Description

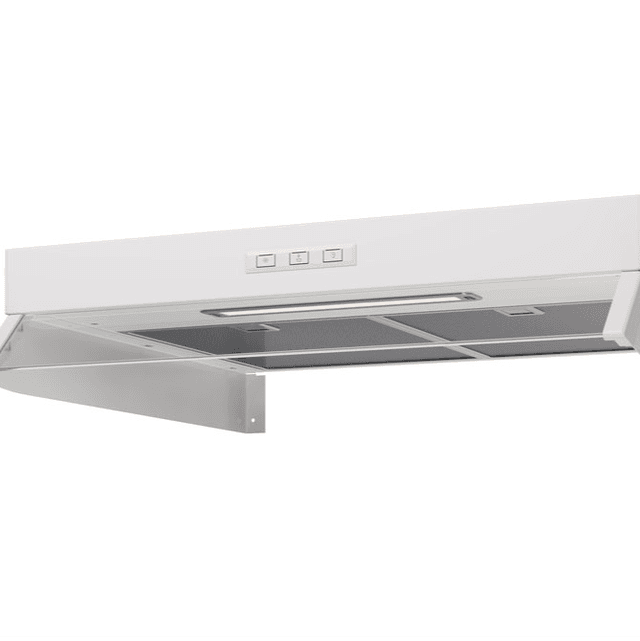

The MONOLIT - B is an effective volume cooker hood which has an ON/OFF damper and LED lighting. Odor extraction without air gudes >75% at 170 m3/h when 50 cm above the oven and 184 m3/h when 60 cm above the oven (EN 13141-3:2017). Odor extraction with small air guides >75% at 159 m3/h when 50 cm above the oven and 180 m3/h when 60 cm above the oven (EN 13141-3:2017). Odor extraction with big air guides >75% at 126 m3/h when 50 cm above the oven and 152 m3/h when 60 cm above the oven (EN 13141-3:2017). The cooker hood is to be connected to the dedicated 5’th duct connection on the SAVE /B unit. Digital output (DO) wires from the cooker hood have be connected to any free universal input (UI) on unit. By opening damper, a signal is automatically sent to the unit to increase ventilation capacity. The aluminum grease filter can be removed with a simple operation for cleaning in hot soapy water or in the dishwasher.
