Description

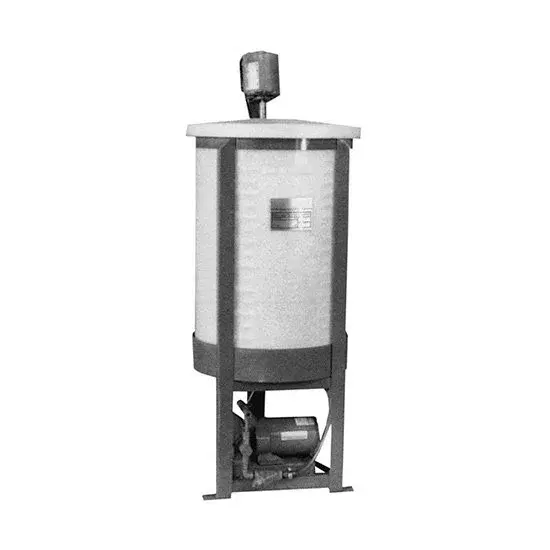

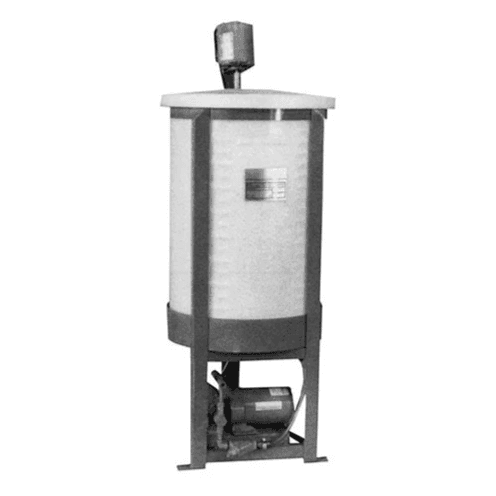

Vertical 50 gallon polyethylene tank on stand with lid (other size tanks and tank materials available). 5/8″ piston pump, adjustable from 0 to 6.2 gallons per hour (GPH) (other size and capacity of piston and diaphragm pumps available). Piston pump to 1000 psig (various stainless steel heads available as an option). Modular configuration to meet customer requirements includes: tank with lid on stand, piston pump, factor suction piping and agitator. Continuous Run Only: control panel and make-up water meter. Can be custom configured to meet customer requirements. More than one pump may be mounted under a 50 gallon tank. 1/4 HP, totally enclosed non-ventilated (TENV), 115/1/60 volt motor standard (50 hertz and many other motor options available). • Factory suction piping includes: strainer and safety relief valve. Agitator: angle or clamp mounted, 1/4 HP TENV, 115/1/60 volt motor standard (50 hertz and many other motor options available). Pump control via make-up water meter signal to panel-mounted timer. Continuous Run—NEMA 12 control panel includes: mixer and pump switches, motor relays, fuses, terminal strip and timer. On-Off—Control panel and water meter available as options.
