Description

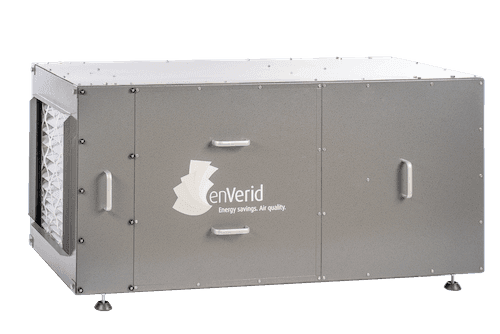

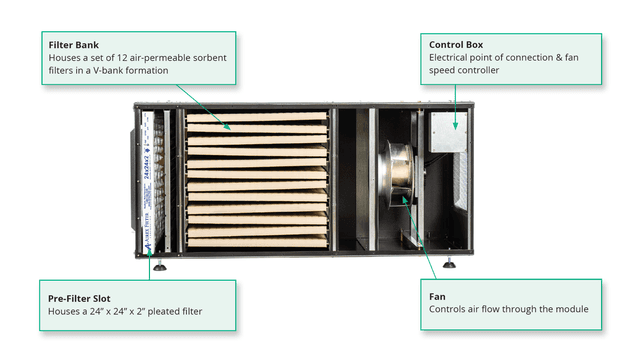

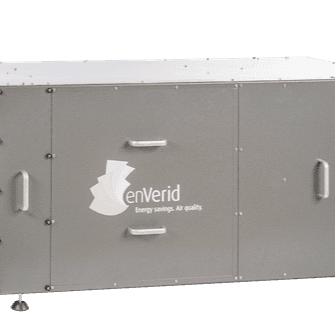

The HLR 100M module uses Sorbent Ventilation Technology® to provide improved indoor air quality and dramatically lower HVAC costs by cleaning indoor air so that it can be safely recirculated. The HLR 100M complies with ASHRAE Standard 62.1, is easily integrated with most HVAC system designs, and delivers a significant number of LEED and WELL points. When combined with high-efficiency filters, the HLR 100M can be used to deliver safe indoor air quality for COVID-19 mitigation with less outside air. This award-winning, industry proven-technology helps owners meet their air quality, carbon reduction, and energy goals with the easiest, most cost-effective air cleaning solution on the market. Indoor Air Cleaning – One or more HLR 100M modules can be installed on the return or supply air side of an air handling unit (AHU) or independent of the AHU. Air is drawn into the HLR 100M by internal fans, which push the air through sorbent filters that capture and remove gaseous contaminants including VOCs like formaldehyde from the air stream. Without producing any byproducts, the HLR 100M then pushes clean air back into the return air stream or space. By cleaning recirculated air, outside air ventilation rates can be safely reduced by up to 85%, and new HVAC equipment can be downsized, using the ASHRAE Standard 62.1 IAQ Procedure.
