Description

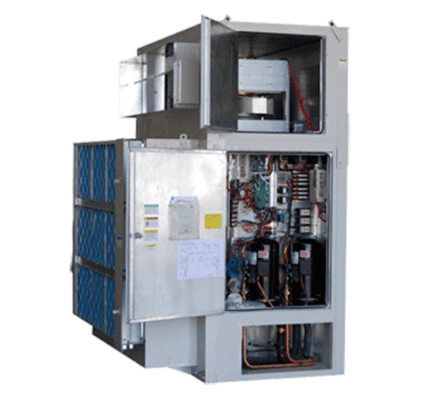

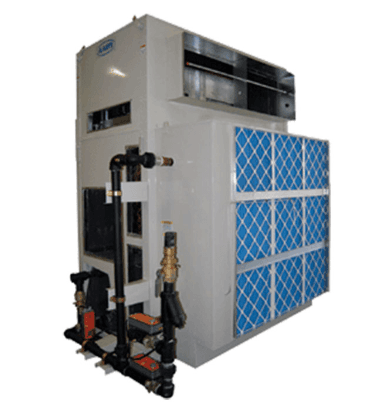

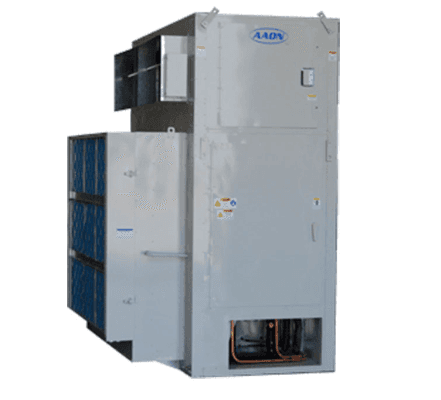

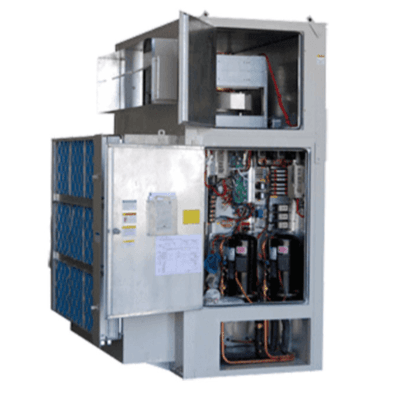

AAON SA Series self contained units and indoor air handling units lead the industry in construction, technology, and efficiency. Variable capacity scroll compressors, spring isolated direct drive backward curved plenum supply fans, and double wall rigid polyurethane foam injected cabinet construction provide the SA Series with unmatched performance. Two-inch double wall rigid polyurethane foam panel cabinet construction has at least a thermal resistance of R-13, which exceeds the R-value of a cabinet with four-inch thick fiberglass construction. Panels include a thermal break, with no metal contact from inside to outside, to prevent heat transfer through the panel and prevent condensation on the outside of the cabinet. The inner wall protects the insulation from moisture damage, prevents microbial growth and is easy to clean. This type of construction also makes the cabinet more rigid and resistant to damage, provides increased sound dampening, and reduces air leakage and infiltration. Modular design with compact footprint makes the SA Series ideal for retrofit applications. Single or double-sided air intake. Access doors with full-length stainless steel hinges and quarter-turn, zinc cast, lockable handles make the unit easily serviceable. Corrosion-resistant exterior polyurethane paint exceeds a 2,500-hour salt spray test. Double-sloped stainless steel drain pans eliminate standing water which can support microbial growth and stainless steel construction prevents corrosion that could lead to water leaks and contaminants in the air stream.
