Description

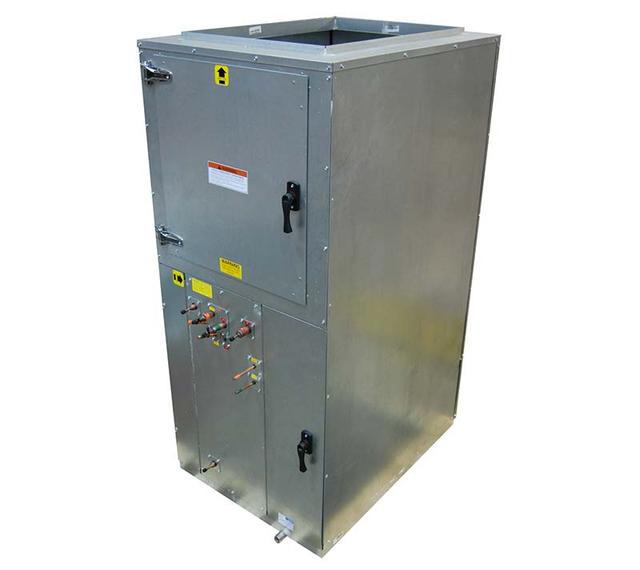

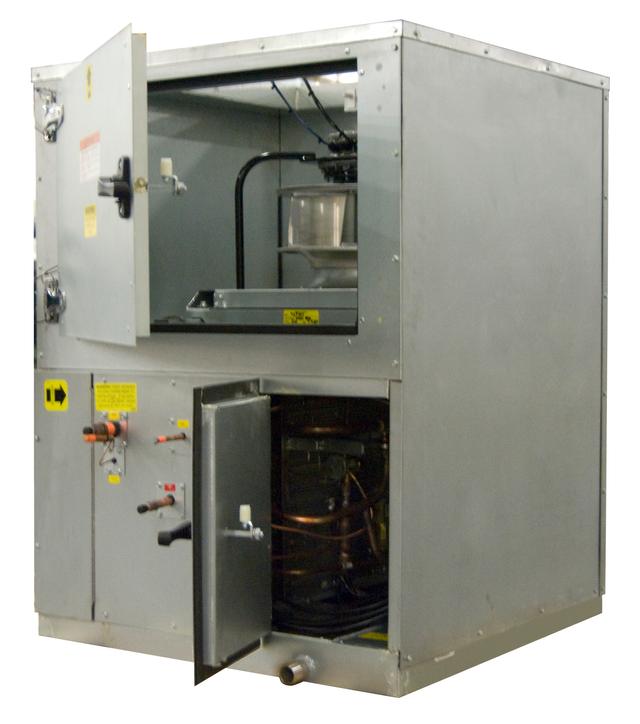

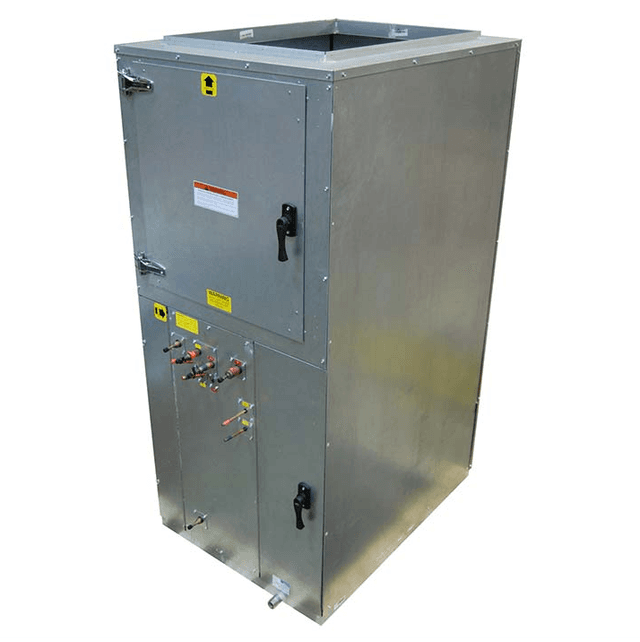

AAON V3 Series vertical indoor air handling units are designed and engineered for a wide variety of heating, cooling, dehumidification, and ventilation applications. Double wall rigid polyurethane foam injected cabinet construction and variable speed direct drive backward curved plenum fans provide the V3 Series with quiet, energy-efficient performance. The V3 Series is available in 5 different vertical sizes which are designed for small closets or mechanical rooms with narrow clearances (width from 30-56 inches, length from 34-36 inches). The compact design is ideal for retrofit applications with each cabinet size being able to fit through a standard 36in wide door. Double wall rigid polyurethane foam injected panel cabinet construction has a higher thermal resistance, or R-value, versus fiberglass construction. Panels include a thermal break, with no metal contact from inside to outside, to prevent heat transfer through the panel and prevent condensation on the outside of the cabinet. Construction also makes the cabinet more rigid and resistance to damage, provides increased sound dampening, and reduces air leakage and infiltration. Double sloped stainless steel drain pans eliminate standing water which can support microbial growth and stainless steel construction resists corrosion that could lead to water leaks and contaminants in the air stream. Access into fan, filter, and coil sections is quick and easy through double wall rigid polyurethane foam doors. The fan doors have chrome plated steel hinges and quarter turn, lockable handles for effortless entry and removable hinge pins for access in compact spaces.
