Manufacturer: BURNDY
B221 - Horizontal Cable Tap to Horizontal Cable Run - 4 AWG (Run & Tap)
Warranty: N/A
ProductID: 64a41fe7a1e1b30029211976
(0 Reviews)
Print QR Code Label
Description

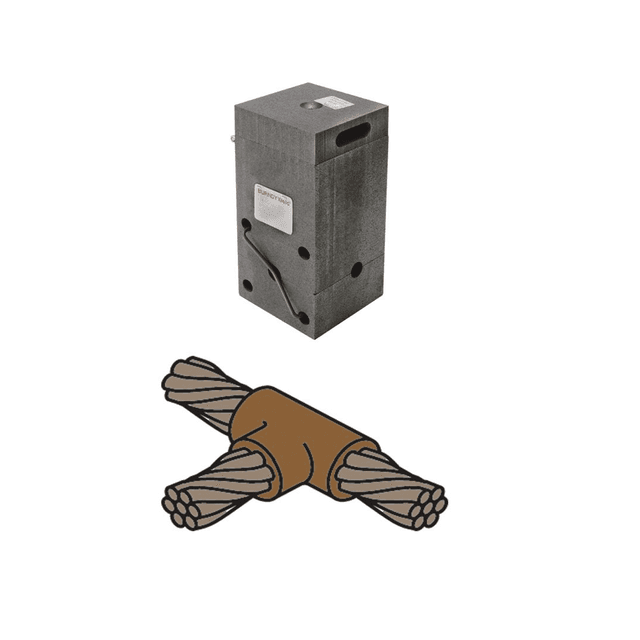

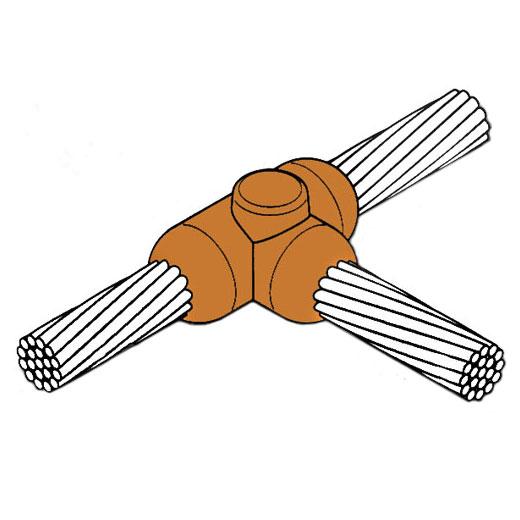

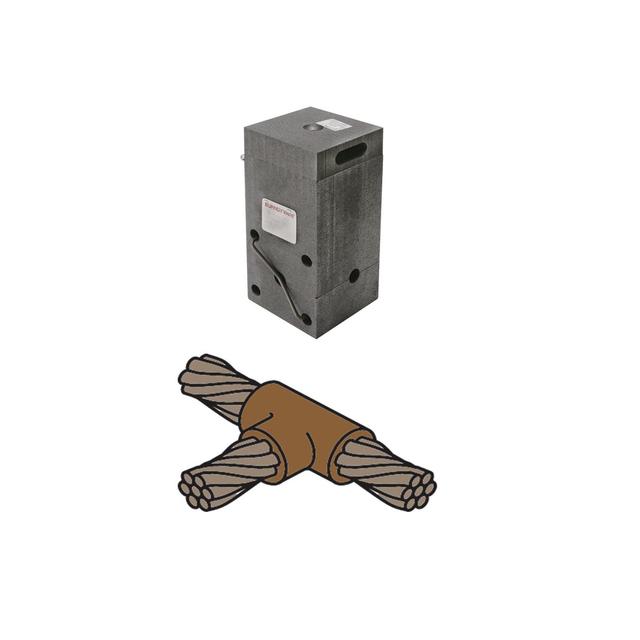

Mold, Horizontal Cable Tap to Horizontal Cable Run, 4 AWG (Run & Tap), 32 Weld Metal. Type BCC-2 Molds Are Used To Join Horizontal Cable Tap To A Horizontal Run Cable, Size Range Is 6 AWG Through 750 KCMIL Concentric Stranded Copper Conductors, Recommended Accessories: B40-0319-01 Mold Cleaner For Cartridge Sizes #15 - #65, B38-3922-00 Mold Cleaning Brush, B38-0135-00 Cable Cleaning Brush, B38-0330-00 Cable Clamp, Conductor Type: Concentric Stranded Copper, Required Tools: B38-0309-00 Flint Ignitor.
CSI Specifications
- 26 05 26 Grounding and Bonding for Electrical Systems
- 26 05 00 Common Work Results for Electrical
- 26 00 00 Electrical
- 41 23 13 Clamps
- 41 23 00 Lifting Devices
- 25 05 13 Conductors and Cables for Integrated Automation
- 25 05 00 Common Work Results for Integrated Automation
- 25 00 00 Integrated Automation
