Manufacturer: Veris Industries

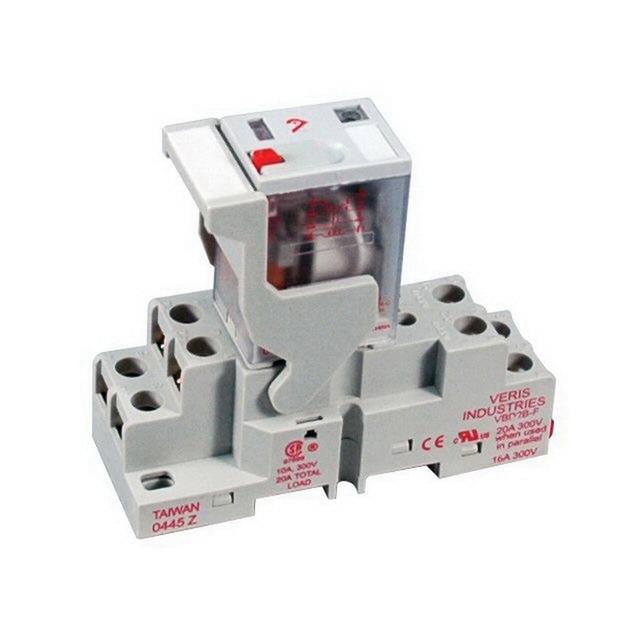

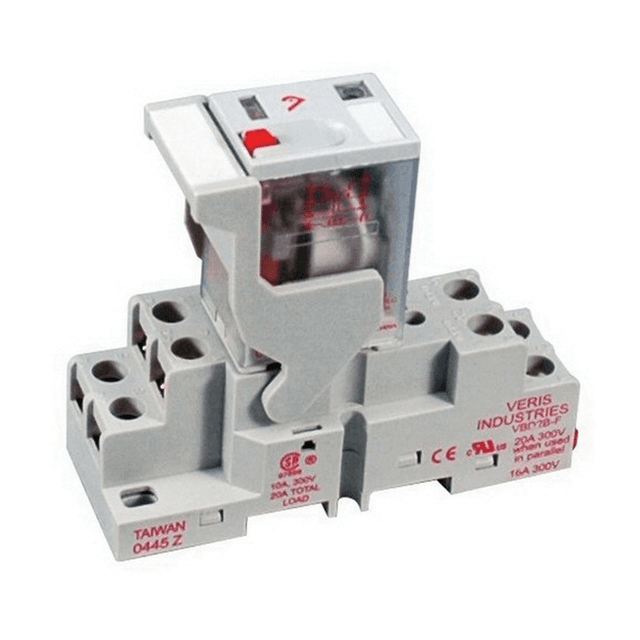

Veris FKIT-VMD2B-F24A Socket Relay

Warranty:  5 years

ProductID:  64b4e96345c3830027d7fb5d

(0 Reviews)
Share:
0
Description

24 VAC Full-Featured Relay with VBD2B-F Socket, DPDT. The VMD2B-F is the full-featured model in a slim housing. The LED, the flag indicator and the test button allow for worry-free operation and easy troubleshooting with minimal downtime. Never wonder where the problem is. DPDT blade-style relays for socket/DIN mounting.

Other products from Manufacturer

CSI Specifications
  • 23 09 00 Instrumentation and Control for HVAC
  • 23 00 00 Heating, Ventilating, and Air Conditioning (HVAC)
  • 23 09 13 Instrumentation and Control Devices for HVAC
  • 23 09 33 Electric and Electronic Control System for HVAC
