Description

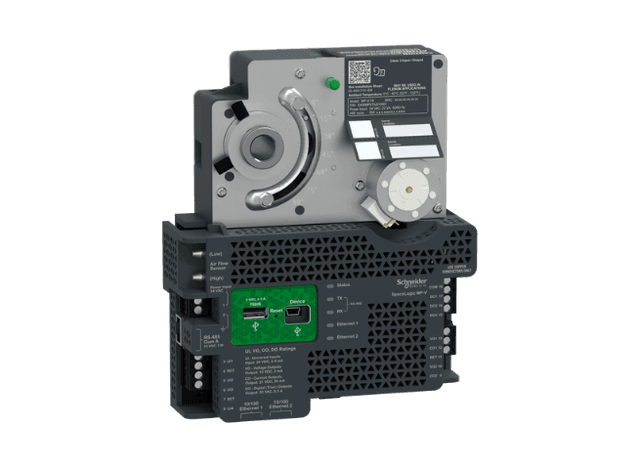

SpaceLogic MP-V controller is a multi-purpose, fully programmable, IP based field controller dedicated for VAV applications. MP-V integrates a controller, a damper actuator, and an air flow sensor in a single compact package for ease of installation. The MP-V-7A has 3 universal inputs, 3 digital triac outputs and 1 analog output with integrated actuator & flow sensor. Its dimensions are 198 mm (7.8 in.) in height, 161 mm (6.3 in.) in width and 63 mm (2.5 in.) in depth. It is a UL 916 (Open Class Energy Management Equipment) listed product for the United States and Canada - UL file E80146. The device can be installed directly over the damper shaft of the VAV box. Available spare parts are terminal blocks (SXWMPVCON10001), Adapter for damper shaft (AM-135), eCommission Bluetooth Adapter.
