Description

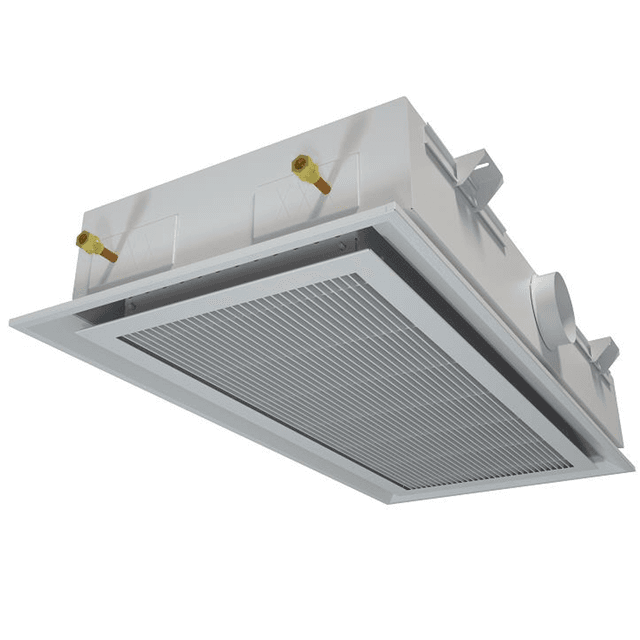

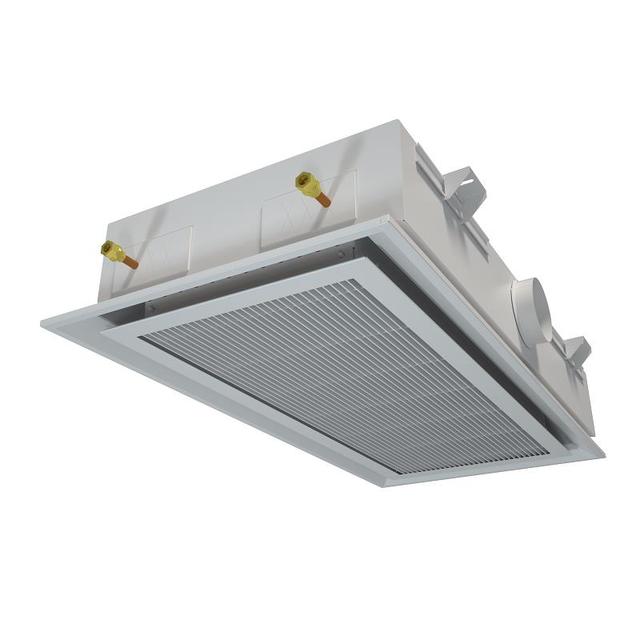

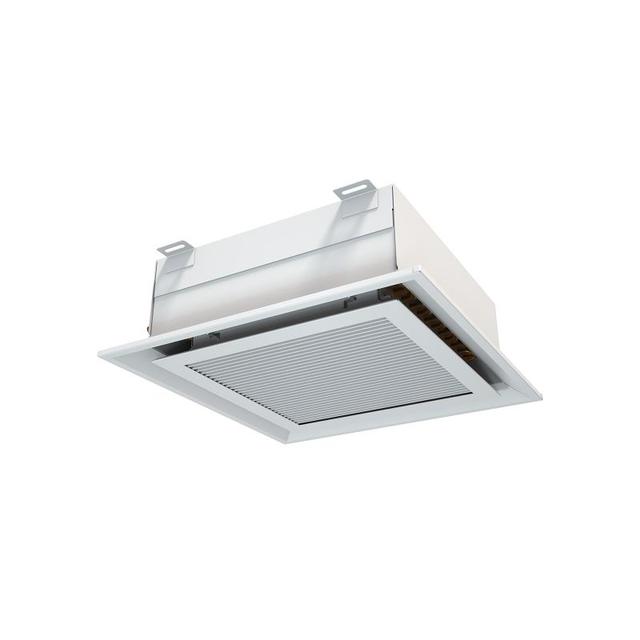

The Price Modular Active Beam, ACBM, provides 4-way air discharge. It functions and incorporates similar features and technology as the ACBL/ACBL-HE and can be easily installed. The ACBM induces room air through the heat exchanger, mixes it with supply air, and delivers the combined airstreams into the occupied zone via slots along the perimeter of the beam. The ACBM is designed to install in a T-bar style ceiling and is available in four standard grid sizes: 24" x 24", 24" x 48", 600 mm x 600 mm, and 600 mm x 1200 mm with a height of 7" [175 mm]. The compact design of the ACBM allows for reduced ceiling plenum heights or minimal clearance requirements for exposed installations.
