Description

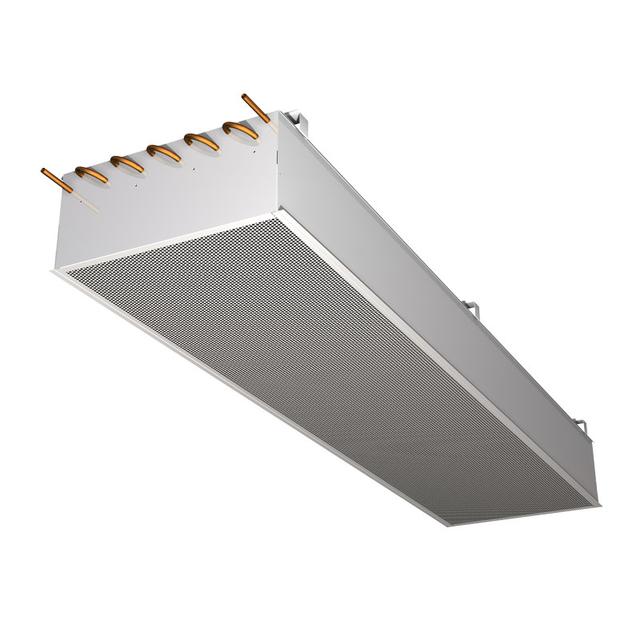

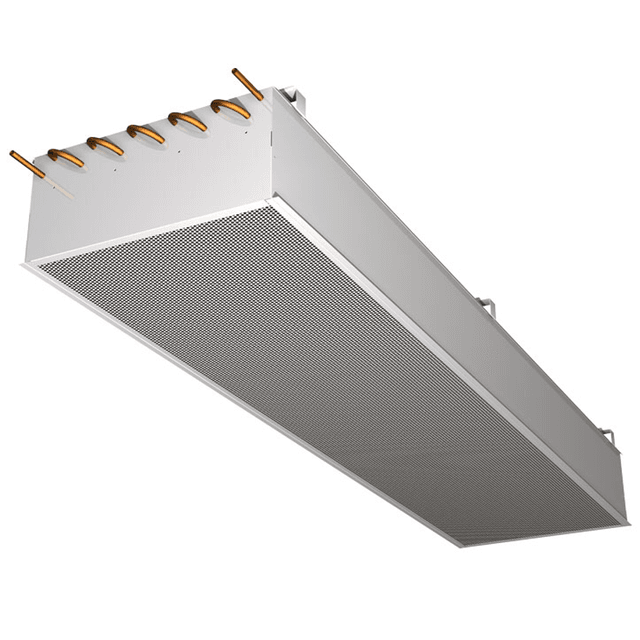

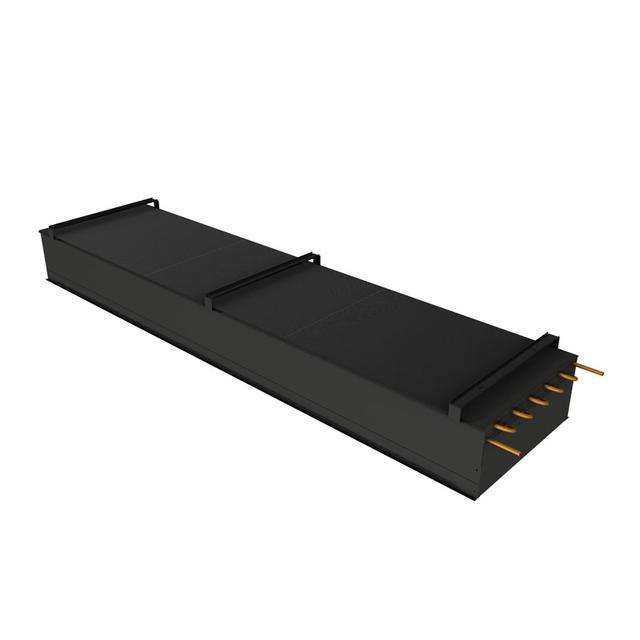

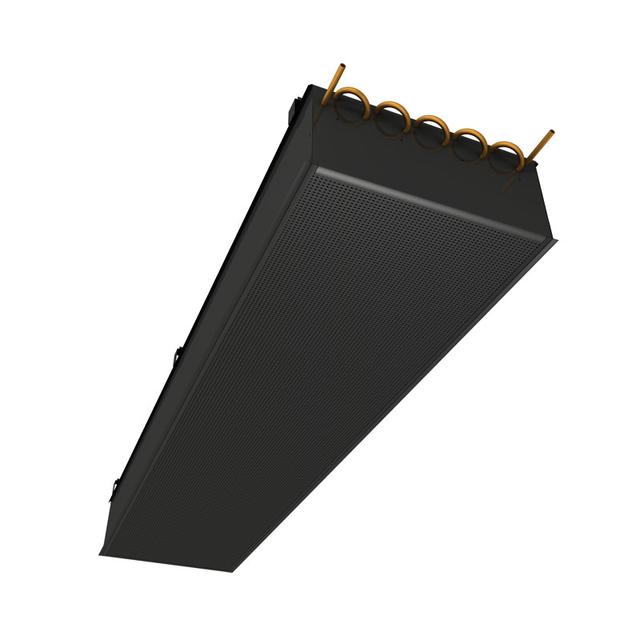

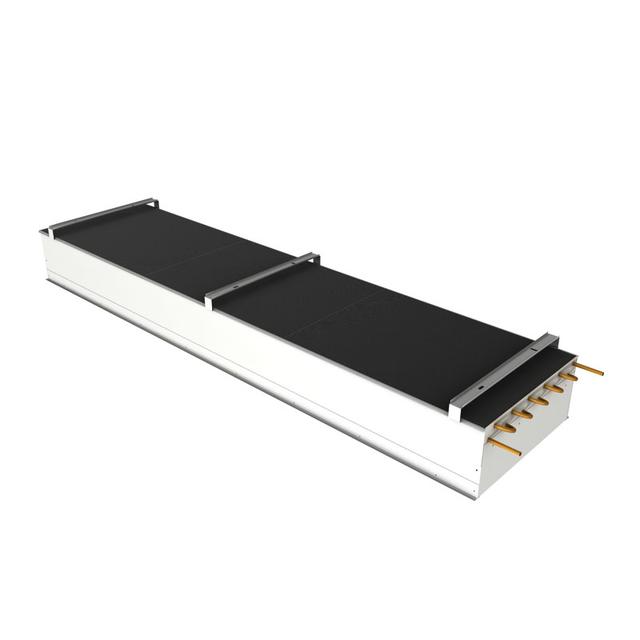

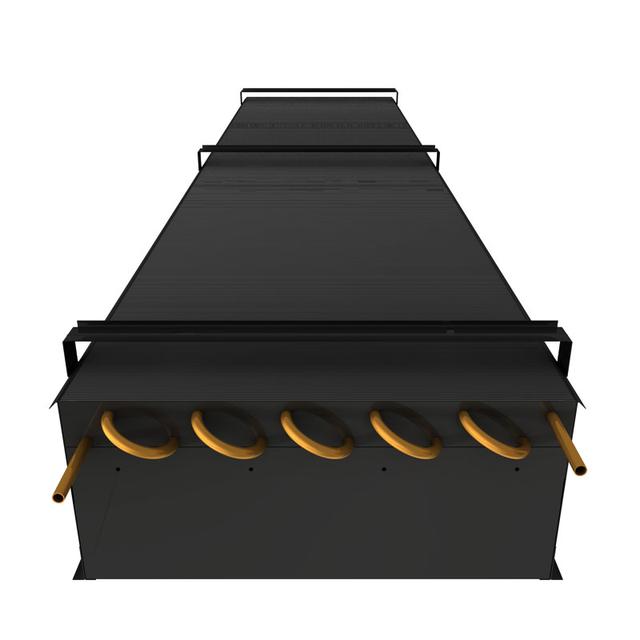

The Price Linear Passive Beam, PCBL, is a cooling-only product that does not require external supply air. The cooling effect is created by natural convection and a cooling coil in the unit. The warm return air rises and contacts the cooling coil, which creates a downward airflow that pulls the return air across the cooling coil and provides cooling capacity. The PCBL is available in 12" [300 mm], 18" [450 mm], and 24" [600 mm] widths and lengths up to 10' [3 m] long in 1' [300 mm] increments. The standard 10" [250 mm] exterior skirt surrounding the coil provides a stack effect and increases the airflow across the coil. The PCBL is designed to fit into standard suspended ceilings and can be installed above perforated tiles for a concealed appearance.
