Description

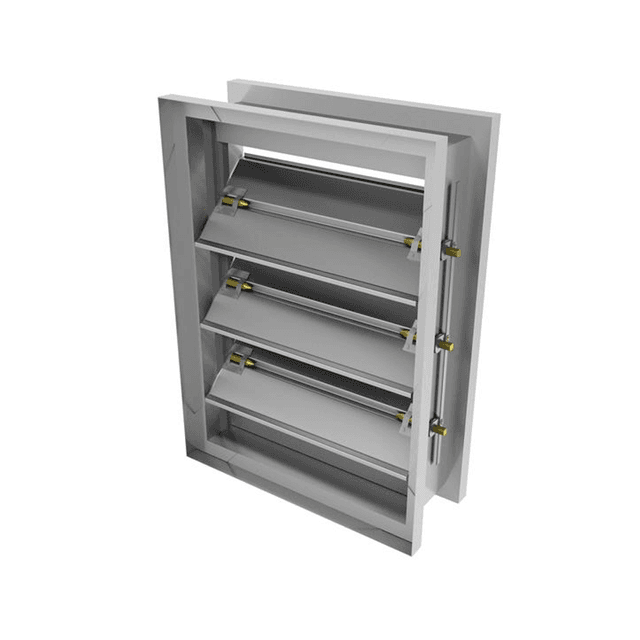

The CCD-GV5-3V is a steel control damper designed and tested to provide a reliable, cost-effective damper where tight sealing is not of primary importance (for a tight seal, see CCD-GV5-3V-LL). The CCD-GV5-3V's rigid frame and integrally braced corners provide true damper alignment, and is available in either parallel or opposed blade models. Damper sections smaller than 48"w x 12"h (1219mm x 305mm) are funished with a low profile top and bottom to maximize free areas. CCD-GV5-3V dampers may be made to accommodate higher thatn the recommended 2.5" w.g. static pressure. If your application involves pressures in excess of 2.5" w.g. or velocities greaer than 2000 fpm, contact Price. Factory-installed electric or pneumatic operators are also available.
